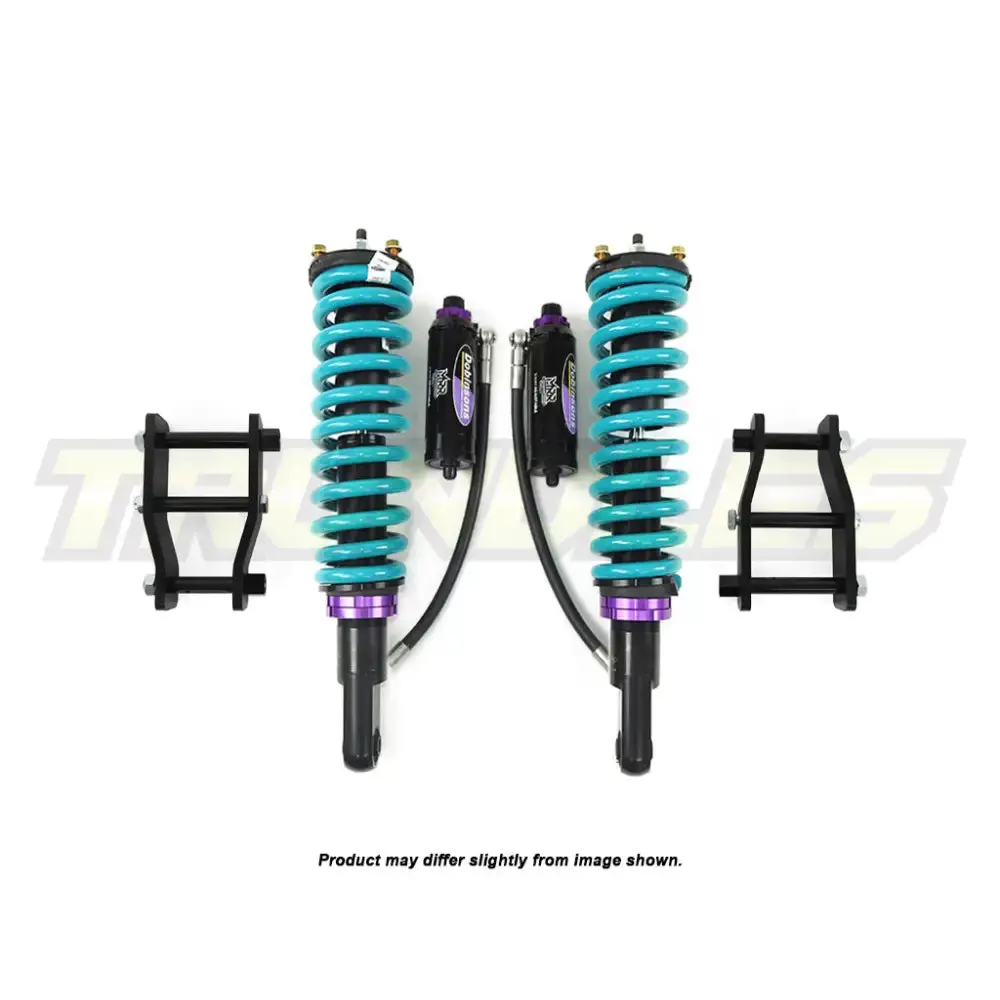

Dobinsons Basic Gas Lift Kit for Ford Ranger PX1 & PX2 (2011–2018)

Description

DETAILS

Dobinsons Basic Gas Lift Kit to suit Ford Ranger PX1/2 2011-2018

We strongly recommend you run an adjustable coil over when opting for a 75mm front lift. This allows you to dial in the ride height while also accommodating varying loads (future proofs your lift if you want to add a bullbar and/or winch in future), and gives you the ability to make any adjustments as necessary come certification time.

– Not Suitable for PX3 Models

Please use the drop down menu to select your model type, lift amount and the correct spring rates depending on your vehicles accessories.

Type: Ranger
Model: PX1/2
Year: 08/2011 – Mid 06/2018
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 35mm – 75mm Lift
Detail:
– 4×4 Chassis Mounted Front Bump Stop Models Only
– Turn-Key Start Models Only
– Also Suits 4×2 High-Rider
– Twin Tube Nitrogen Gas Charged Shock Absorbers
– These front struts are pre-assembled in our workshop and ready to go.

COMPONENTS

Front:
2x Dobinsons Heavy Duty Shocks – GS19-092
1x Pair Dobinsons Springs
2x Trundles Strut Top Mounts – TOP3

Rear:
1x Trundles Extended Shackles

IMPORTANT!

The stock Upper Control Arms can hit the chassis seam on droop in some models.
With the vehicle on the ground, you can remove the top hat crush tube and shorten it around 10mm then refit. This in turn can shorten the shock extended length to give clearance – Some top hats have a longer crush tube which seems to be the cause of this.
