Description

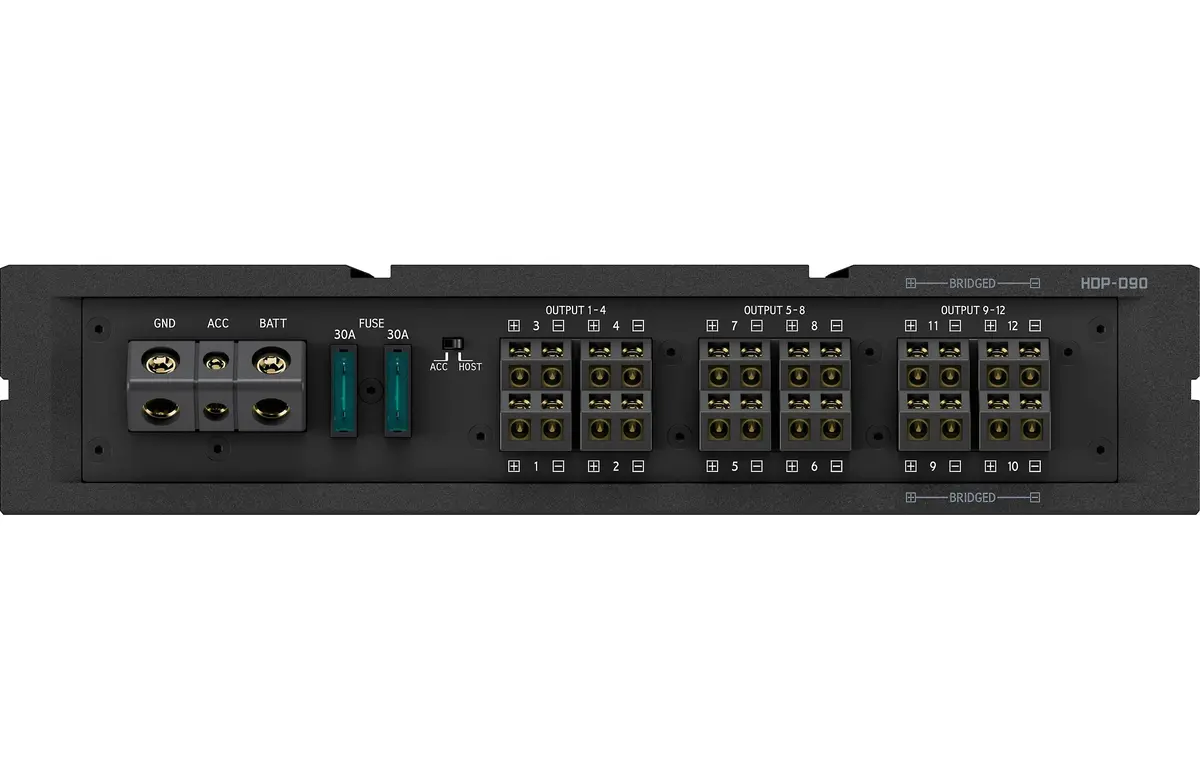

The Alpine HDP-D90 is a 12-channel car amplifier with DSP featuring a powerful 4-ohm bridgeable Class D MOSFET power design and audio signal processing options. Enjoy built-in features such as high-pass filter, low-pass filter, and Bass EQ settings to customize your sound.
Features
- High-Performance 14-Channel Digital Sound Processor Amplifier
- Hi-Res Audio Playback
- PC Tuning Application
- Selectable pre-configured sound system configurations
- Embedded RTA signals for sound tuning
- Bluetooth audio streaming with included external module
- Optional Controller
Specs
- Hi-Res Audio Playback (192kHz/32Bit)
- 14-Channel Outputs (All DSP control)
- Inputs: 12-Channel Hi-level/2-Channel RCA/Optical (SPDIF)/Coaxial (Digital)
- Outputs: 10-Channel RCA output/ 12-Channel High-Level amplified outputs (50W x 8 @4ohm + 80W x 4 @4ohm)
- 31 Band Graphic or Parametric EQ
- Channel mixing by Matrix Input Summing
- Sampling Rate (Internal): 192kHz/32Bit
- S/N: >110dB, THD: <0.001%
- Hi pass/low pass crossover per channel
- Time correction: up to 7mm delay per channel
- Sigma DSP (ADAU1467x2)
What’s in the box
- 14ch Digital Signal Processor Unit
- PWR/GND Harness
- External Bluetooth Module
