Description

🚨 CCS Compatibility Must Read Before Purchase

This device requires use with Tesla vehicles that support the CCS charging protocol.

Important Note: Many older or early-production Teslas may require a hardware retrofit or software update for CCS support. Please carefully CHECK YOUR VEHICLE’S COMPATIBILITY before purchasing to ensure proper function.

• Model Y Performance (2025.10+)
• Cybertruck

/* — CORE CSS STYLES — */ @import url(‘https://fonts.googleapis.com/css2?family=Inter:wght@100..900&display=swap’); /* 1. Global Container and Styling Encapsulation */ .product-detail-page { max-width: 100%; /* Allow width to extend to borders */ margin: 0; padding: 0; box-sizing: border-box; font-family: ‘Inter’, sans-serif; color: #1f2937; /* Default dark text */ background-color: #ffffff; overflow-] .faq-icon { transform: rotate(45deg); color: #007BFF; } /* ================================================= */ /* === SPECIFICATION LAYOUT FIX (CRITICAL CHANGES) === */ /* ================================================= */ /* 针对规格表格上方的图片，强制 1:1 正方形比例 */ .spec-column .placeholder-visual { aspect-ratio: 1 / 1 !important; /* 使用 !important 确保覆盖其他样式 */ min-height: 0; /* Override the min-height added earlier */ } /* Parent container for the two specification columns */ .spec-row-forced { display: flex; flex-wrap: nowrap; /* Prevents wrapping on desktop by default */ gap: 1.5rem; /* Equivalent to gap-6 */ justify-content: center; align-items: flex-start; } /* Individual column structure (forced 50% width on desktop) */ .spec-column { /* This calculation forces the width to 50% of the parent (1180px) minus the gap spacing */ width: calc(50% – 0.75rem); /* Flex properties for robustness */ flex: 0 0 auto; min-width: 300px; /* Ensures columns don’t get too narrow on smaller tablets */ } /* Specification Table Styling */ .spec-column table { border-collapse: collapse; } .spec-column th, .spec-column td { padding: 0.8rem 1rem; /* Consistent padding */ } .spec-column .bg-gray-50 { background-color: #f9fafb; /* Lighter background for headers */ font-weight: 600; color: #374151; } /* 6. Responsive Layout: Screen width span:first-child { text-align: left; padding-left: 0.5rem; } /* Override for Spec Section on Mobile: Force stacking and 100% width */ .spec-row-forced { flex-direction: column; flex-wrap: wrap; gap: 0; /* Remove gap when stacking */ } .spec-column { width: 100%; min-width: 100%; margin-bottom: 1.5rem; /* Add spacing between stacked columns */ } }

V2L EV Discharge Adapter for Tesla Model Y Performance



Key Features and Benefits

V2L/V2H Ultimate Energy Station

Converts the high-capacity battery power from the Tesla EV through the charging port into high-quality household AC power, enabling powerful Vehicle-to-Load (V2L) capabilities. Provides continuous power for outdoor camping or home emergencies.

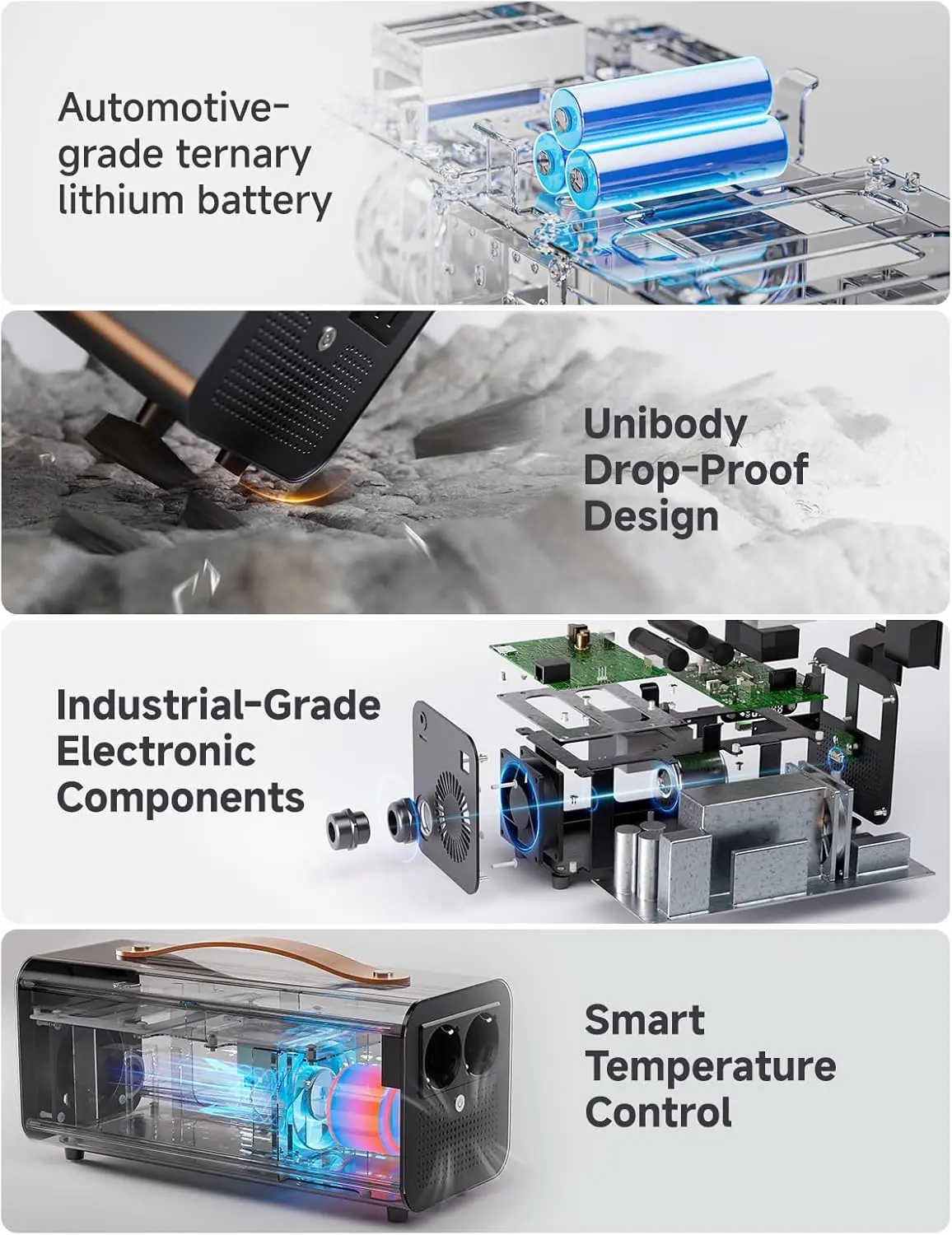

Smart Temperature Control System

The V2L discharge device is equipped with a dual-turbine cooling system and dedicated air ducts, ensuring high-efficiency heat dissipation and stable operation within a wide temperature range of -10°C to 40°C.

Multifunctional LED Display

Our V2L discharge device features a high-quality LED digital display screen that provides real-time voltage, current, and power readings, giving you complete control over the discharge status. Ideal for camping, road trips, emergency backup, and outdoor activities.

Product Specifications

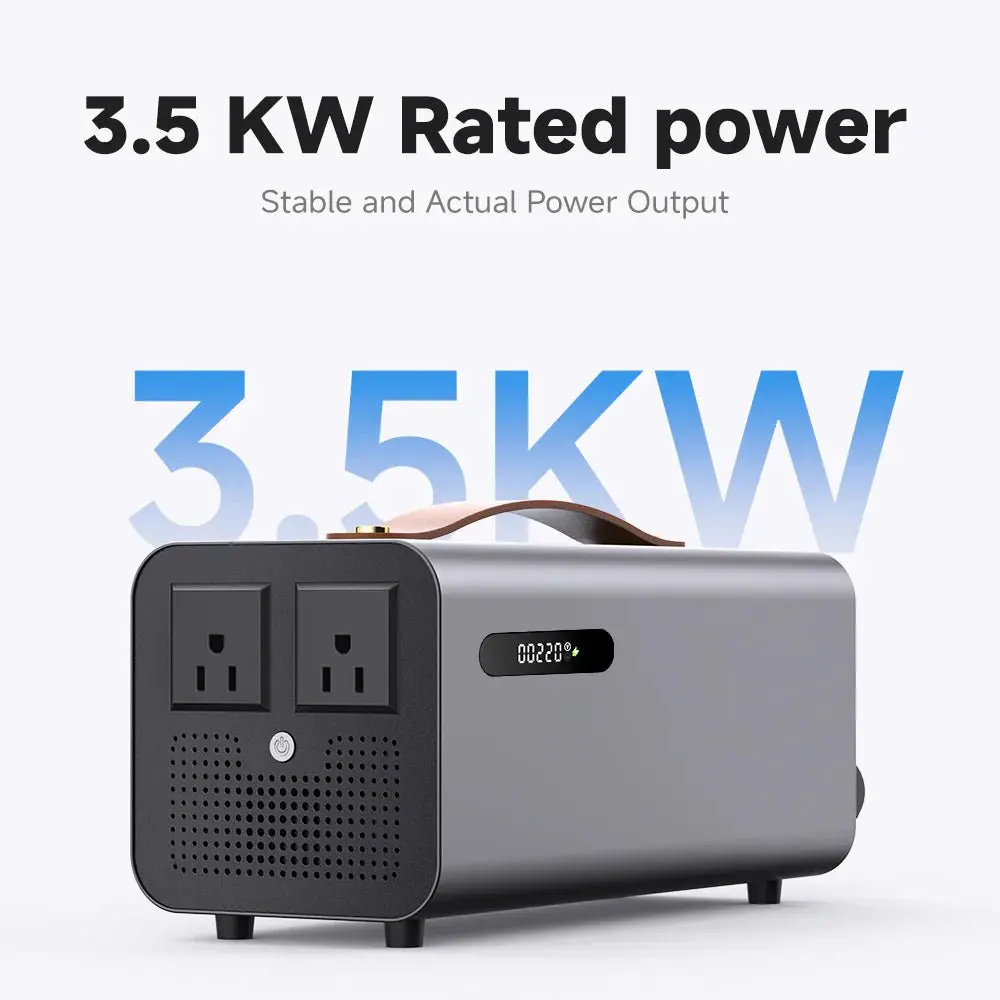

NACS Standard 3.5KW

Compatible Model	Model Y Performance(model with CCS2 installed)
Material	Aluminum alloy+ABS
Barrel (Plug Type)	NACS (Tesla)
Input voltage	DC 300-500V
Output voltage	AC 110-120V (60HZ)
Output interface	US sockets*2
Single socket current	15A MAX
Total output current	30A MAX
Total output power	3.5KW MAX

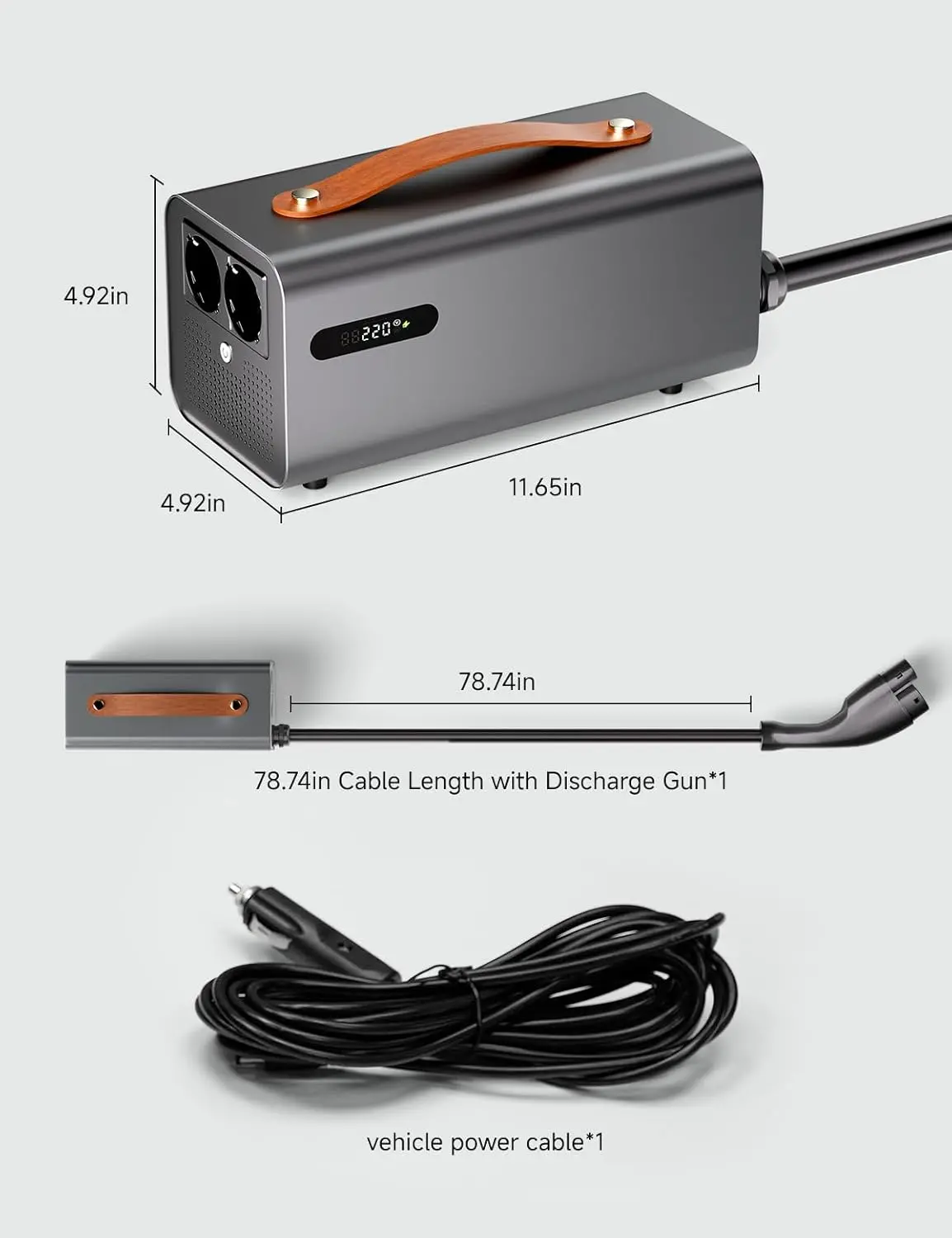

Bare machine size	296*125*125mm
Barrel length	2M
Weight of the product	4kg
Built-in battery capacity	12V 2.55AH
Packaging dimensions	410*210*250mm
Packaging weight	5kg
Stop discharging power level	SOC at 20% and has come to a stop
Screen display	Output voltage
Working temperature	-10°C to 40°C

CCS2 Standard 5KW

Compatible Model	Model Y Performance (model with CCS2 installed)
Material	Aluminum alloy+ABS
Barrel (Plug Type)	CCS2
Input voltage	DC 320-520V
Output voltage	AC 220-240V (50HZ)
Output interface	EU sockets*2
Single socket current	16A MAX
Total output current	23A MAX
Total output power	5KW MAX
Bare machine size	296*125*125mm
Barrel length	2M
Weight of the product	4kg
Built-in battery capacity	12V 2.55AH
Packaging dimensions	410*210*250mm
Packaging weight	5kg
Stop discharging power level	SOC at 20% and has come to a stop
Screen display	Output voltage
Working temperature	-10°C to 40°C

Frequently Asked Questions (FAQ)

Can my older Tesla model use this device? +

You must confirm if your vehicle has been activated or retrofitted to support the CCS charging protocol before purchase. If your vehicle is an early model, an ECU upgrade kit for CCS might be required for proper function. Please verify, otherwise the device will not work. This visual comparison might help you identify your port type.

What is the difference between V2L and V2H? +

V2L (Vehicle-to-Load) typically refers to powering external devices such as camping appliances or power tools. V2H (Vehicle-to-Home) specifically refers to using the device to feed electricity back into your home grid for use as backup power. This device supports both functions. Here’s a diagram showing how the EV powers external loads.

What is the maximum output power of the device? +

Depending on your chosen configuration, the output power is either 3.5KW (US) or 5KW (EU). Please select the appropriate model based on your usage needs and regional standards.
