Description

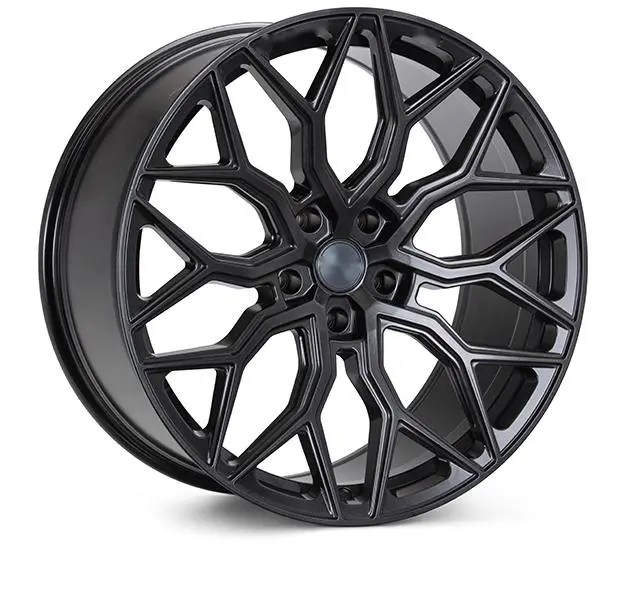

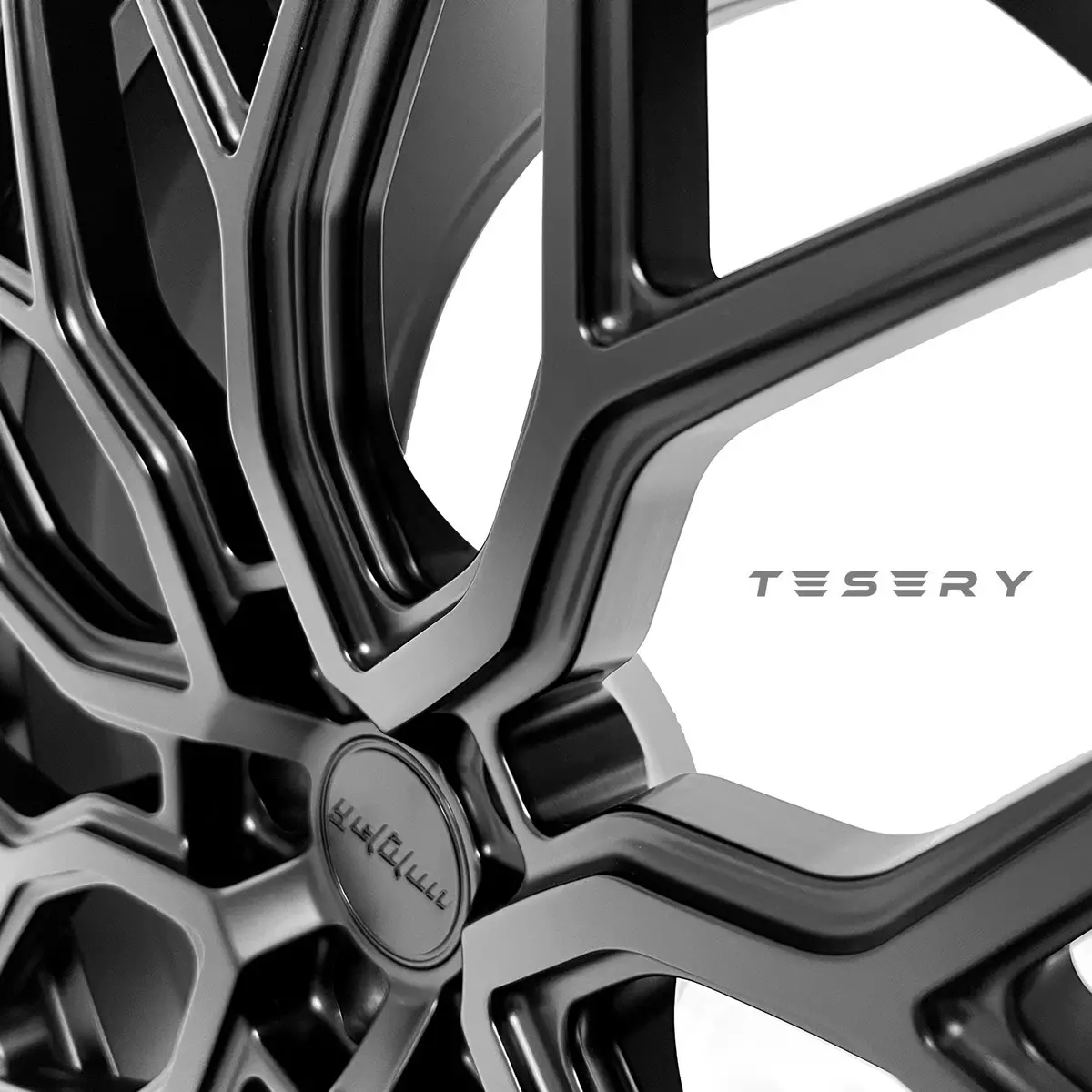

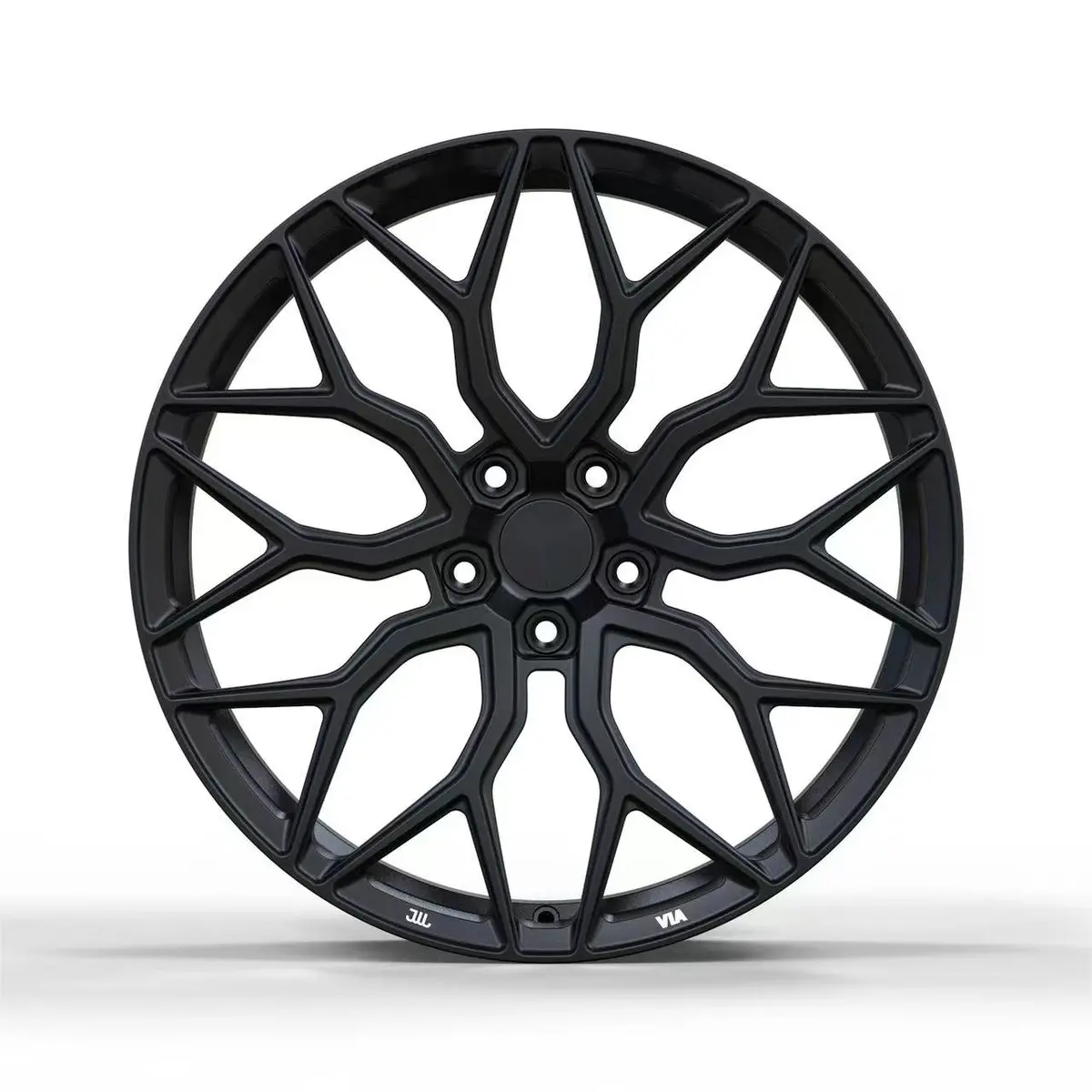

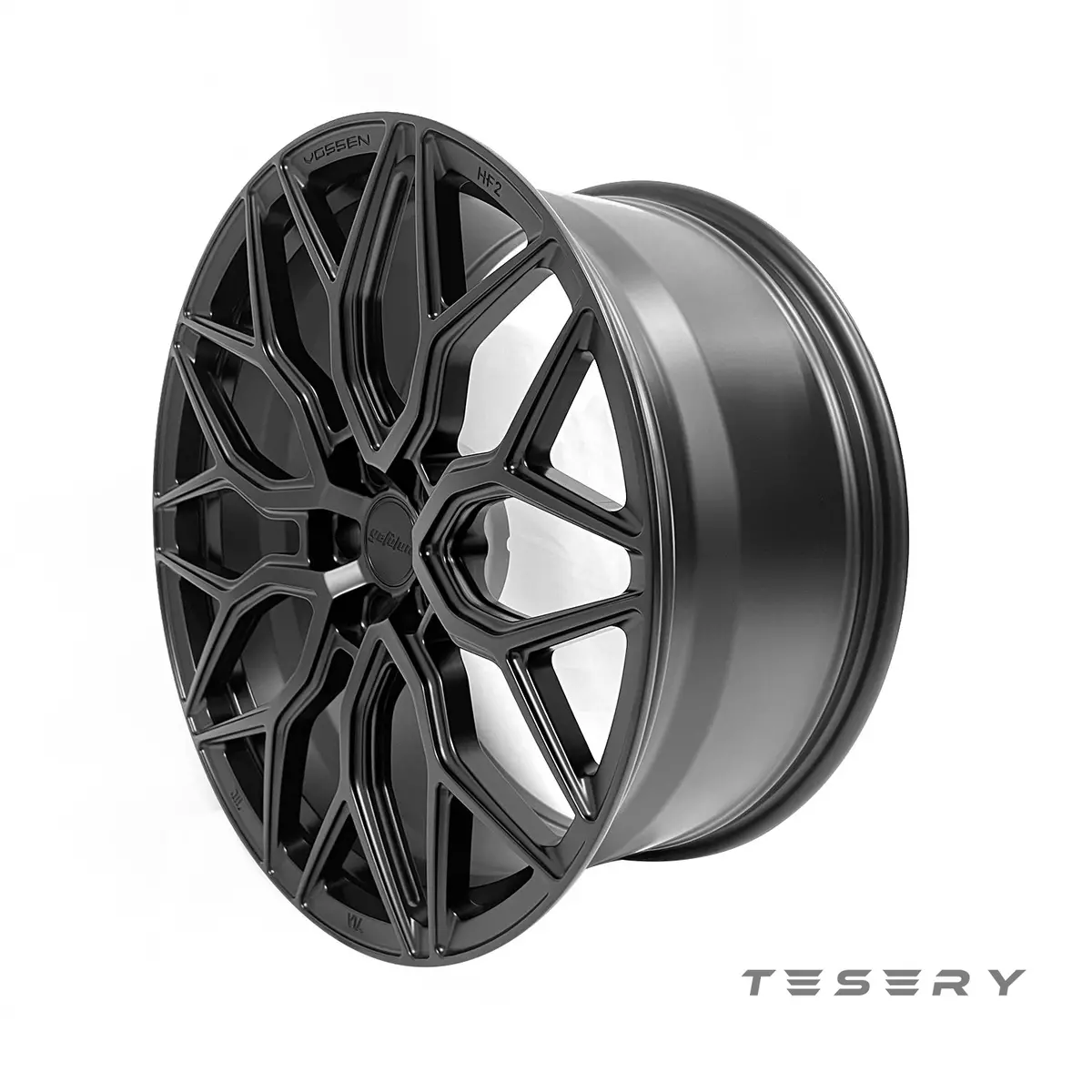

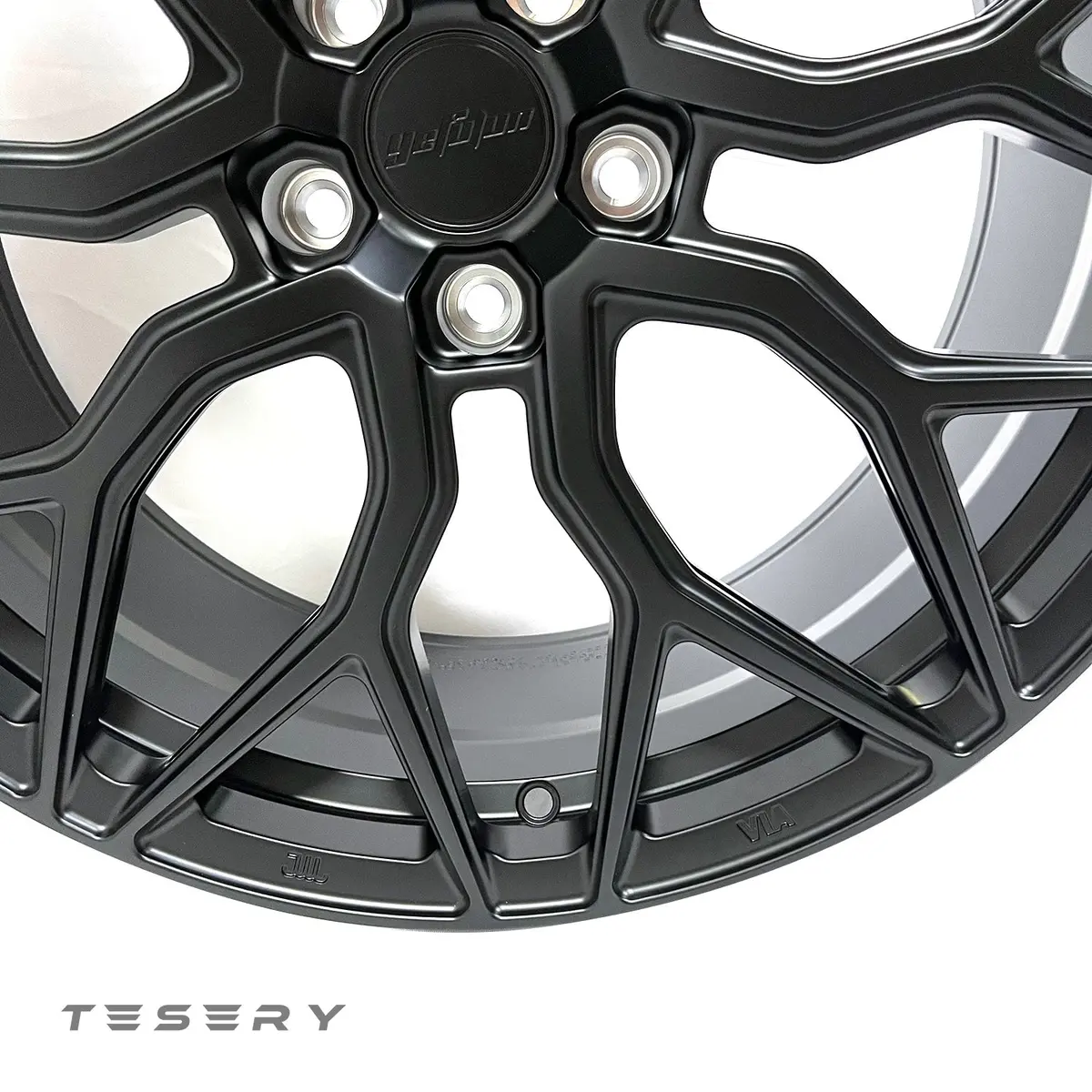

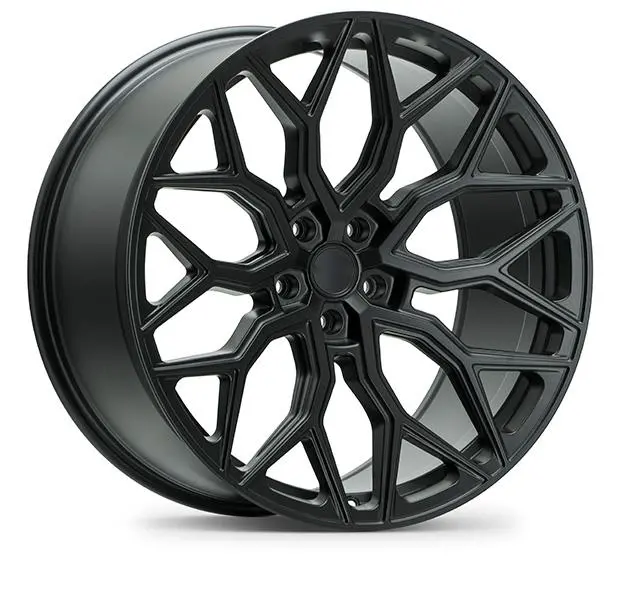

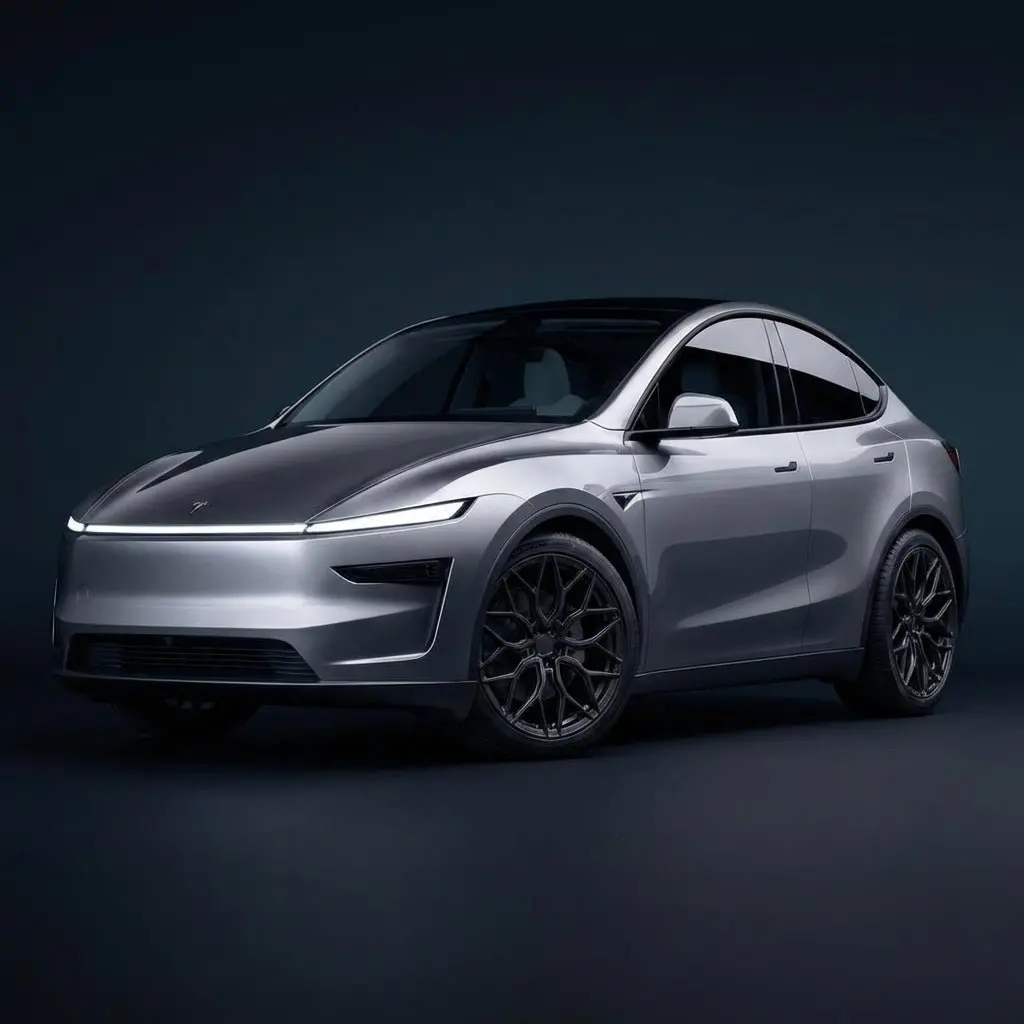

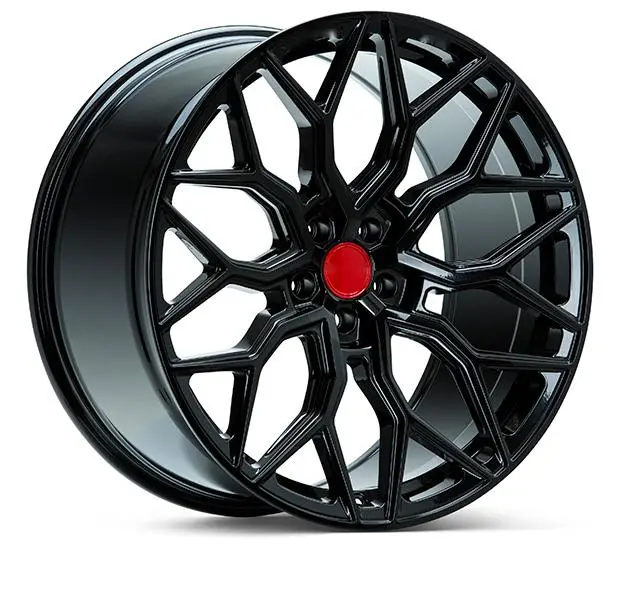

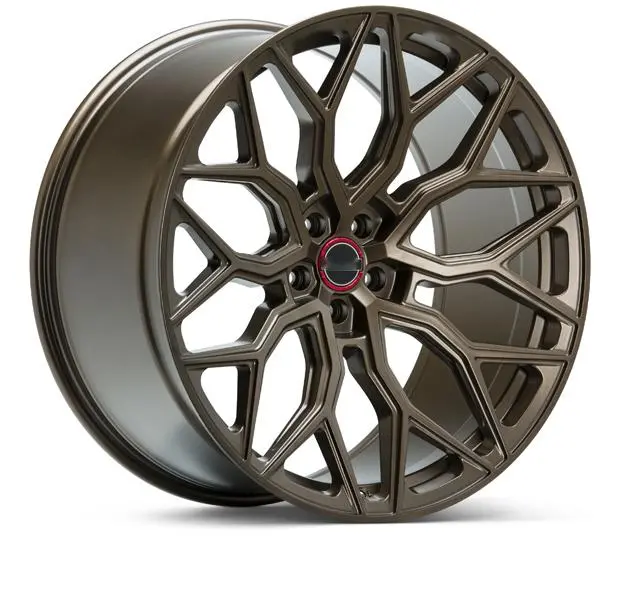

Forged wheels for retrofitting Tesla Model 3/Y/S【Style 8】

Specialized for Teslas: Forged wheels designed exclusively for Tesla vehicles, suitable for personalized modifications, factory wheel replacements, and winter wheel use.

Manufacturing Process: Fully forged.

Material: Forged from 10,000 tons of 6061-T6 aluminum.

Compatibility: Compatible with Tesla OEM lug nuts, TPMS sensors, and center caps.

Load Capacity: TESERY’s 18-inch and 19-inch wheels have a load capacity of >=850KG/PCS, 20-inch and 21-inch wheels have a load capacity of >=950KG/PCS, and 22-inch wheels have a load capacity of >=1000KG/PCS.

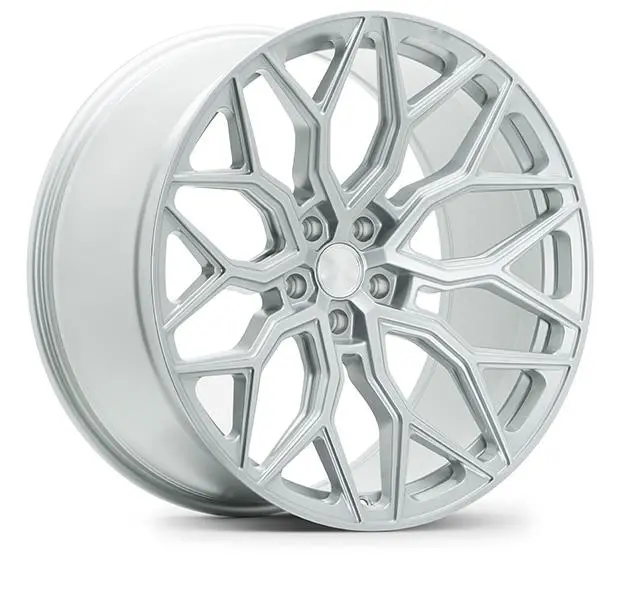

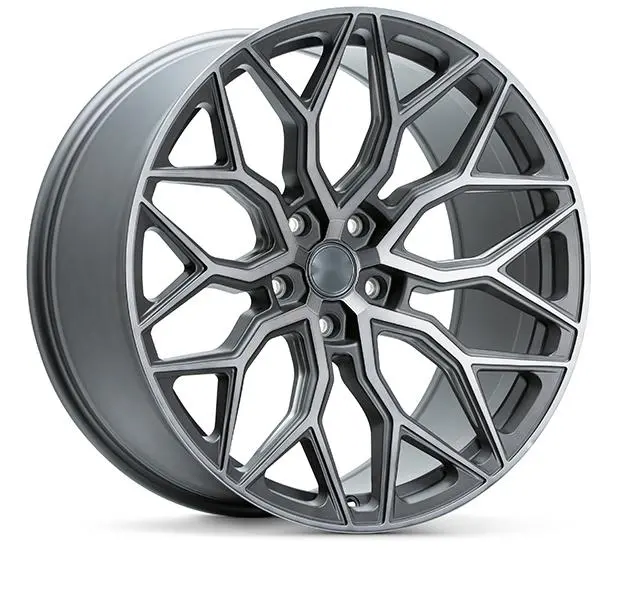

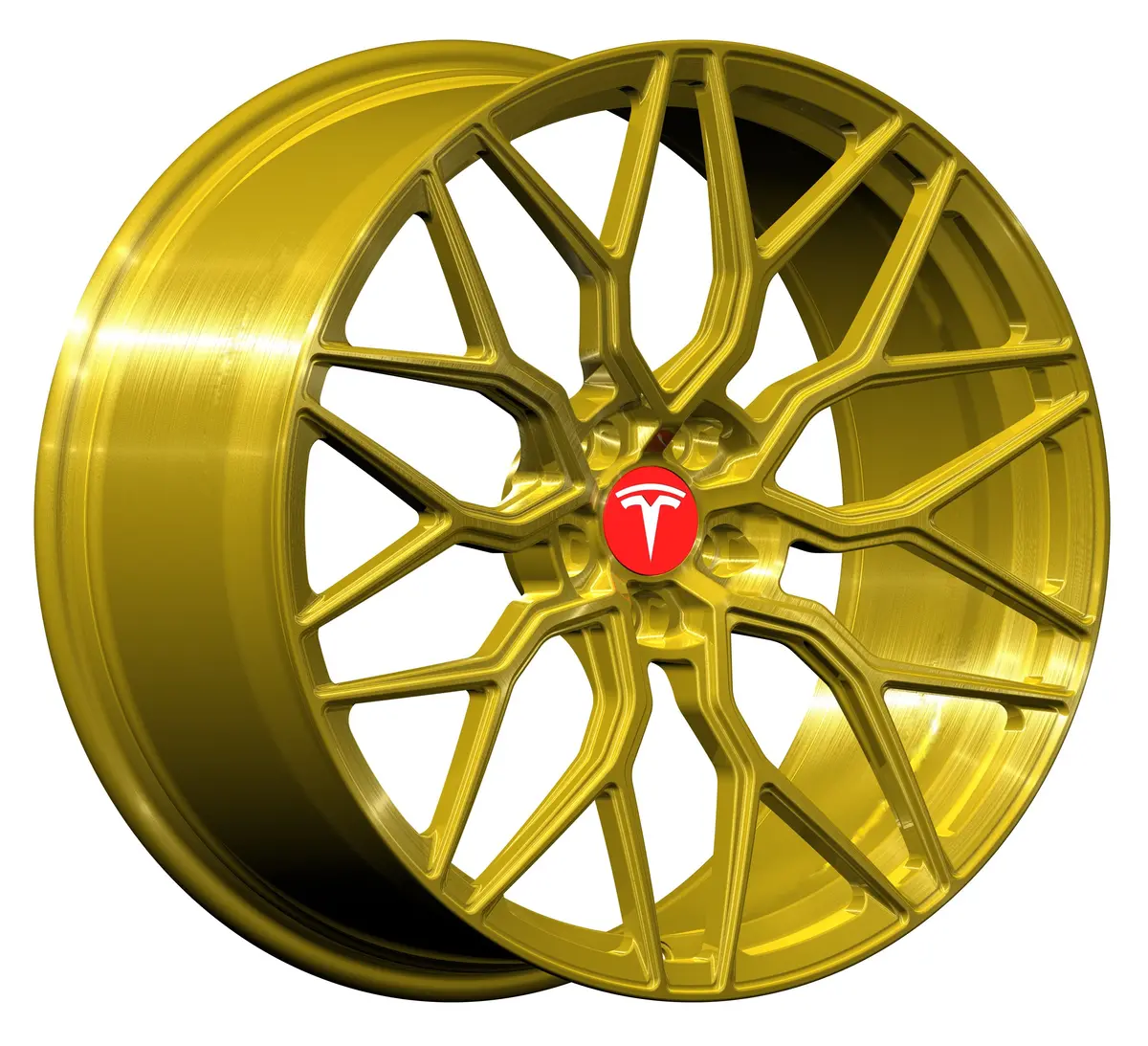

Customization: Free customization for any color (surface brushing process + $400 for a set of 4 wheels), customization of text on the wheel surface (e.g., names, text logos; +$100 for a set of 4 wheels).

*For customization, please contact our customer service: service@tesery.com.

*Customized products are non-refundable and non-exchangeable unless due to quality issues.

Wheel Weights:

18-inch: 9KG/PCS – 12KG/PCS

19-inch: 9.5KG/PCS – 14KG/PCS

20-inch: 10KG/PCS – 15KG/PCS

21-inch: 10.5KG/PCS – 16KG/PCS

22-inch: 11.5KG-PCS – 17.5KG/PCS

*Different styles and offsets may result in weight differences, with more hollow wheel designs being lighter.

MODEL 3 WHEEL:

18″ Specifications (Fits All Tesla Model 3 Variants)
Size: 18×8.5″
Offset: +35
Bolt Pattern (PCD): 5×114.3
Center Bore: 64.1
Tire Size: 235/45-18
19″ Specifications (Fits All Tesla Model 3 Variants)
Size: 19X8.5″ Front & 19X9.5″ Rear
Offset: +35
PCD: 5X114.3
Center Bore: 64.1
Tire Size: 19×8.5″: 235/40-19/19×9.5″: 265/35-19
20″ Specifications (Fits All Tesla Model 3 Variants)
Size: 20×8.5″ Front & Rear, or 20×8.5″ Front & 20×10″ Rear
Offset: +35 Front, +40 Rear
Bolt Pattern (PCD): 5×114.3
Center Bore: 64.1
Tire Size: 20×8.5″: 235/35-20; 20×10″: 275/30-20

MODEL Y WHEEL:

18″

Specifications (Fits All Tesla Model Y Variants)
Size: 18×8.5″
Offset: +35
Bolt Pattern (PCD): 5×114.3
Center Bore: 64.1
Tire Size: 245/50-18
19″
Specifications (Fits All Tesla Model Y Variants)
Size: 19×9.5″
Offset: +35
Bolt Pattern (PCD): 5×114.3
Center Bore: 64.1
Tire Size: 255/45-19
20″
Specifications (Fits All Tesla Model Y Variants)
Size: 20×10″
Offset: +40
Bolt Pattern (PCD): 5×114.3
Center Bore: 64.1
Tire Size: 255/40-20
21″
Specifications (Fits All Tesla Model Y Variants)
Size: 21×9.5″ Front, 21×10.5″ Rear
Offset: +32 Front, +40 Rear
Bolt Pattern (PCD): 5×114.3
Tire Size: 21×9.5″: 255/35-21; 21×10.5″: 275/35-21

MODEL S WHEEL:

19″
These wheels will fit the New 2021 Model S.
Specifications
Size: 19×9.5″ Front & 19×10.5″ Rear
Offset: +35
Bolt Pattern (PCD): 5×120
Center Bore: 64.1
Tire Size:19×9.5″: 255/45-19 / 19×10.5″: 285/40-19
20″
These wheels will fit the New 2021 Model S.
Specifications
Size: 20×10.0″ Front & Rear
Offset: +35
Bolt Pattern (PCD): 5×120
Center Bore: 64.1
Tire Size: 285/35-20
21″
These wheels will only fit the New 2021 Model S Long Range and Plaid.
Specifications
Size: 21×9.5″ Front, 21×10.5″ Rear
Offset: +35
Bolt Pattern (PCD): 5×120
Center Bore: 64.1
Tire Size:21×9.5″: 265/35-21 / 21×10.5″: 295/30-21

MODEL X WEHHL:

19″
These wheels will fit the New 2021 Model X.
Specifications
Size: 19×8.5″
Offset: +35
Bolt Pattern (PCD): 5×120
Center Bore: 64.1
Tire Size: 265/50-19
20″
These wheels will fit the New 2021 Model X.
Specifications
Size: 20×9.0″ Front, 20×10″ Rear
Offset: +35
Bolt Pattern (PCD): 5×120
Center Bore: 64.1
Tire Size: 20×9.0″: 265/45-20 / 20×10″: 275/45-20
22″
These wheels will fit the New 2021 Model X.
Specifications
Size: 22×9.0″ Front, 22×10″ Rear
Offset: +30
Bolt Pattern (PCD): 5×120
Center Bore: 64.1
Tire Size: 22×9.0″: 265/35-22; 22×10″: 285/35-22
