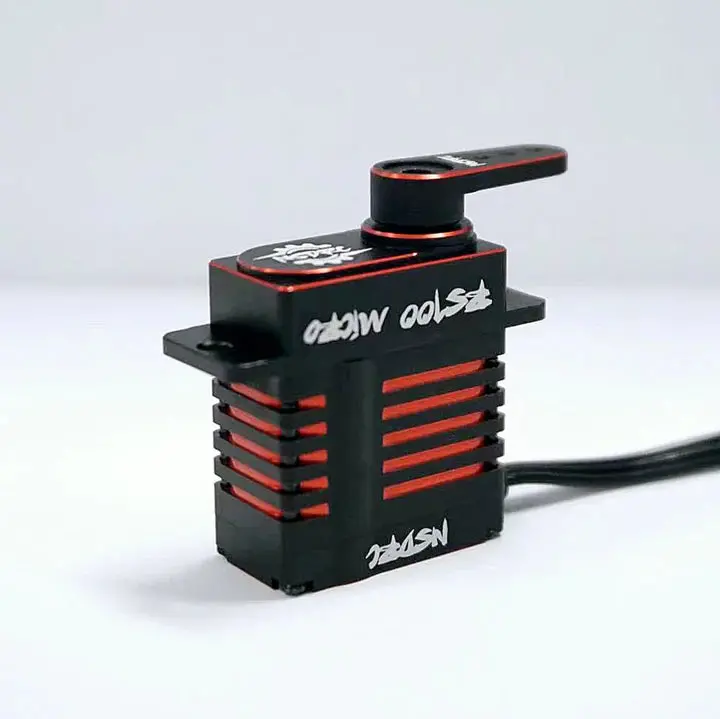

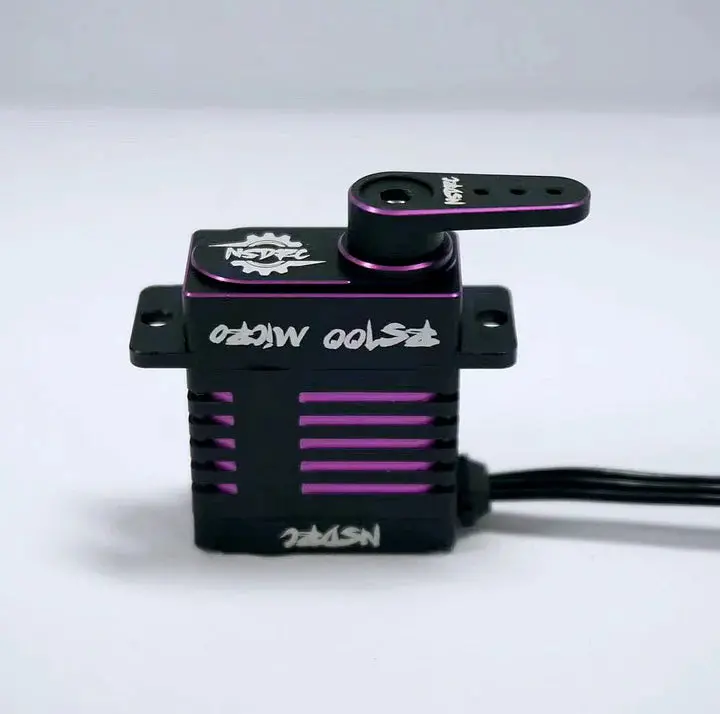

RS100M Micro Servo – Compact High-Torque Actuator

Description

RS100M High Torque / Speed Micro Servo

☆As of May 18 2022, the RS100 has been updated! Now with even more power, and lower amp draw!

Operating Voltage: 5v – 8.4v

Torque:                                Speed:

105oz/ 7.5kg @ 5v             0.10 @ 5v

120oz/ 8.6kg @ 6v              0.08 @ 6v

143oz/ 10.3kg @ 7.4v         0.07 @ 7.4v

165oz/ 11.9kg @ 8.4v         0.06 @ 8.4v

• High Quality Motor
  •Full Cnc Aluminum Case
  •Hardened Steel Gears
  •Spline: 25T 4.9mm Micro
  •Voltage: 5v-8.4v
  •Bearing: 2BB
  •Wire Length: 185mm
  •Weight: .70 oz / 20 Grams
  •Dimensions: 23 x 12 x 26mm
  •Water Resistant with 7 point O-ring seal

           Not Submarine proof, do not submerge
*These do not fit in the stock Scx24 servo mount, we recommend using our Aluminum Scx24 mount or similar.

* BLACK DOES NOT COME WITH SERVO HORN*
