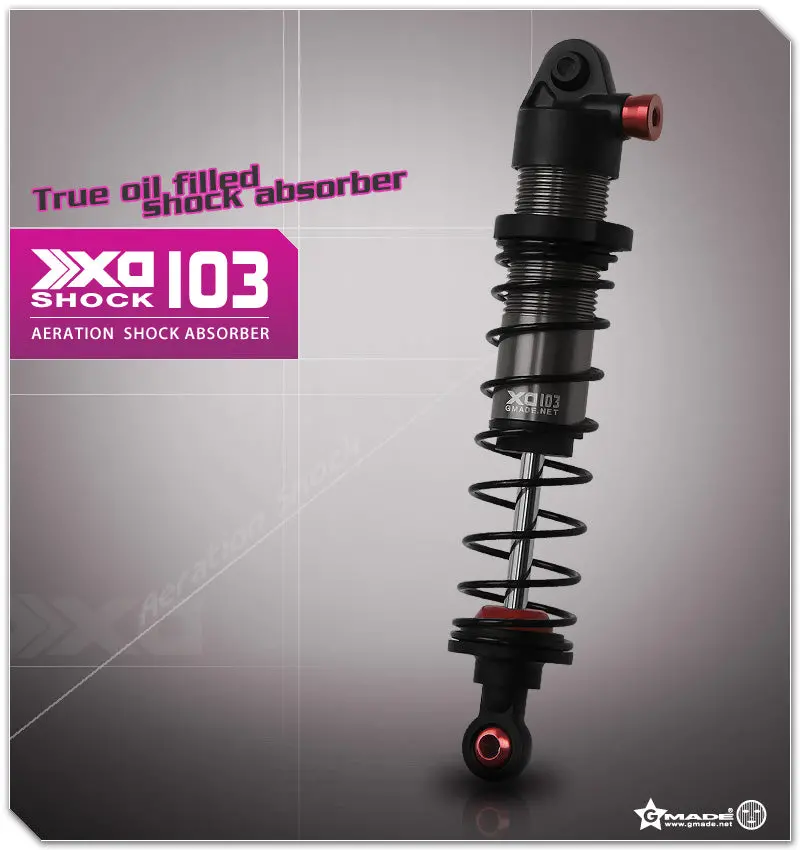

GM24102-XD Dual-Adjustment Aeration Shock Absorber – 103mm Stroke

Description

GMA24102
XD Dual Rate Aeration Shock 103mm (2pcs)

Fits 1/8 & 1/10 scale crawlers & trucks, 1/10 scale EP buggys and Short course trucks (such as Gmade R1 and GOM, Axial Wraith and Bomber, Traxxas E-maxx and 2WD Slash rear).
What’s included:
Silver anodized aluminum shock bodies x 2
Silver anodized aluminum spring adjust nuts x 2
Silver anodized aluminum stop rings x 2
Silver anodized aluminum cartridges x 2
Shock springs x 4
All necessary hardware to finish the shocks
Assembly instructions

Features:

CNC machined aluminum shock bodies, spring adjust nuts, stop rings and cartridges.

Silver anodized shock bodies, spring adjust nuts, stop rings and cartridges

Upper and lower shock ends includes silver anodized aluminum balls

Fully threaded for rapid adjustment

Delrin pistons, shaft exits through double O-ring seals and true dual stage spring rate.

Easy load shock seal assembly

Specifications:

Shock Body Diameter: 14mm

Spring Diameter: 19mm

Spring Length: 20mm and 50mm

Full Shaft Travel Range: 31mm (without Rubber bump stop)

Shaft Diameter: 3.5mm
