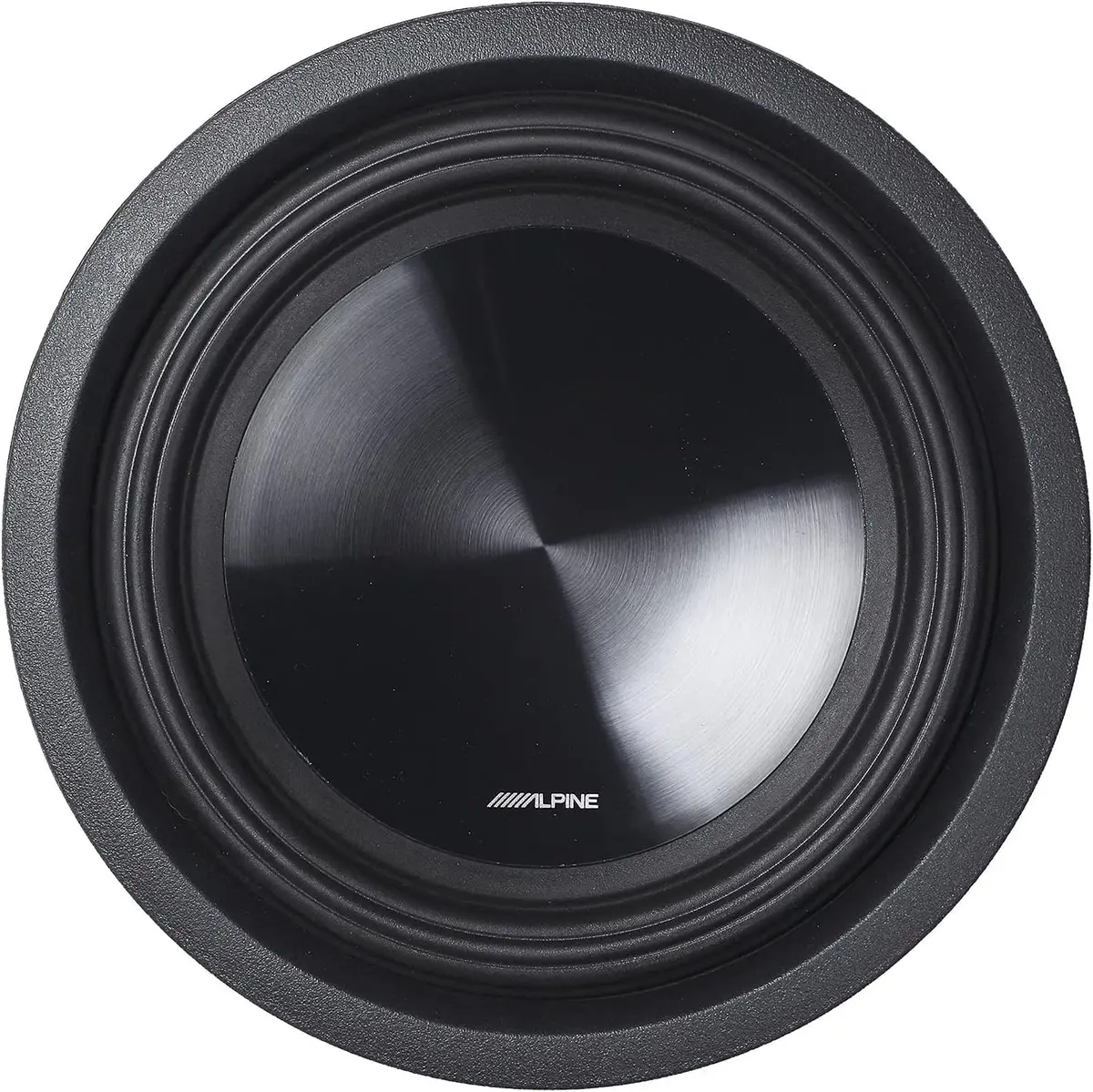

Alpine SWT-10S4 10-Inch High-Power Truck Subwoofer with Dual 4-Ohm Voice Coils

Description

The Alpine SWT-10S4 10″ Truck Subwoofer is designed to deliver clear and powerful bass performance in any vehicle. It features dual 4-ohm voice coils, a lightweight yet rigid cone design and a stamped steel basket, providing up to 1000 W peak power output. With it’s advanced engineering, the subwoofer will help you get the biggest, deepest and cleanest bass sound.

FEATURES

Diaphram

• Material: Poly-Mica Dust Cap & Pulp-Kevlar
• Design: 2-Piece Shallow Cone Structure

Surround

• Material: Polyurethane Foam Surround
• Design: H.A.M.R. Surround Technology

Spider

• Material: Conex Spider with Reinforced Layer Tinsel Leads
• Design: Progressive

Voice Coil

• Material: Spiral Cut Aluminum Former
• Design: 65mm Voice Coil with High-Temp 4-Layer SVC Winding

Motor Structure

• Pole Geometry: Compound Radius Curve
• Configuration: Dual Flare Pole Vent with Airflow Back Plate

Frame

• Material: High Strength Steel
• Design: Perimeter Venting with Airflow Management System
• Terminals
• Layout: Push Terminals
• Design: 8AWG
• Gasket
• Design: Concealed Mount Gasket (Integrated Grille System Ready, US Pat #7,760,900)

TECH SPECS

Power Handling

• CEA-2031 Power Rating: 350 Watts
• Power Range: 100W – 350W
• RMS Power Handling: 350 Watts
• Peak Power Handling: 1000 Watts

Dimensions

• Mounting Depth: 105.5 mm (4-3/16”)
• Mounting Diameter: 227 mm (8-15/16”)
• Displacement: -0.02 cu. ft.
• Added Volume: +0.03 cu. ft.

General

• Frequency Response: Frequency Response: 30Hz – 200Hz
