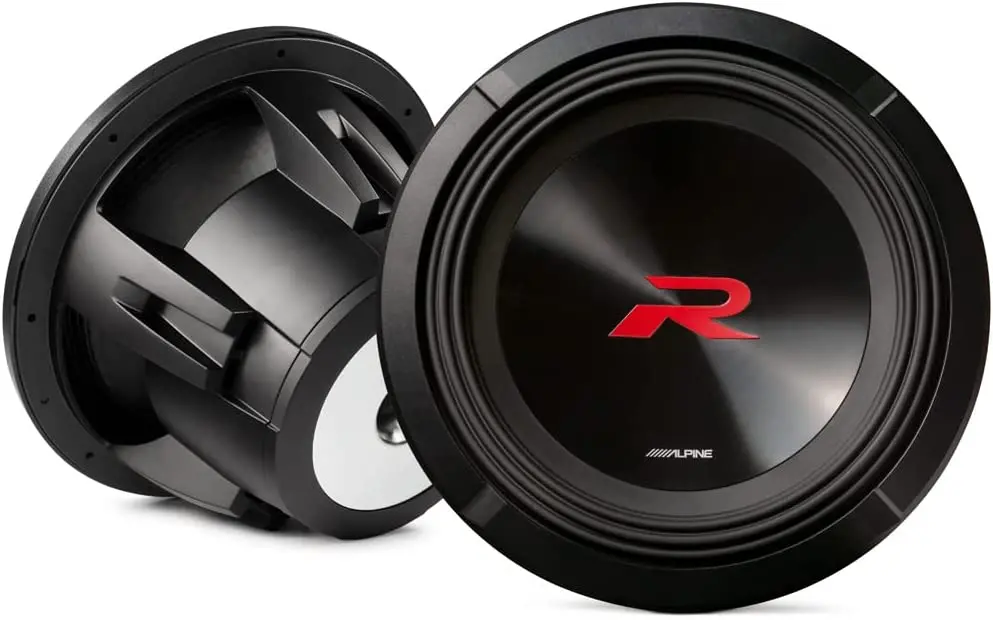

Alpine R2-W12D4 12″ Dual 4-Ohm Subwoofer

Description

The Alpine R2-W12D4 12″ Subwoofer is an ideal choice for sound systems, featuring dual 4 ohm voice coils and a 4-layer aluminum voice coil. Delivering impressive performance, this subwoofer uses a durable stamped steel basket for a powerful, deep bass response.

Features

• 12-inch R-Series Subwoofer with Dual 4-Ohm Voice Coils
• Dual Voice Coil (DVC) Subwoofers with Configuration Jumpers
• Polypropylene/Ceramic Composite Dust Cap
• Kevlar Reinforced Pulp Cone High-Performance subwoofers
• Twist-Lock Grille Mount System
• High-Amplitude Multi-Roll (H.A.M.R.) Surround
• Large Double-Stacked Magnets
• CTA-2031 Compliant

Specs

• Speaker Size: 12”
• 750W RMS
• 2250W Peak Power Handling
• Frequency Response: 24Hz-200Hz
• Sensitivity (1W/1m): 84.5dB
• Nominal Impedance: 4 ohms
• Voice Coil: 65mm
• X-Max: 20mm
• Magnet Weight: 144oz
• Push-Type Speaker Terminals (Up to 8AWG Wire Size)

Dimensions

• Mounting Depth: 6-1/2”
• Cutout Size: 10-7/8”

What’s in the box

• Alpine 12″ Sub Woofer 4+4 ohms
