Description
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

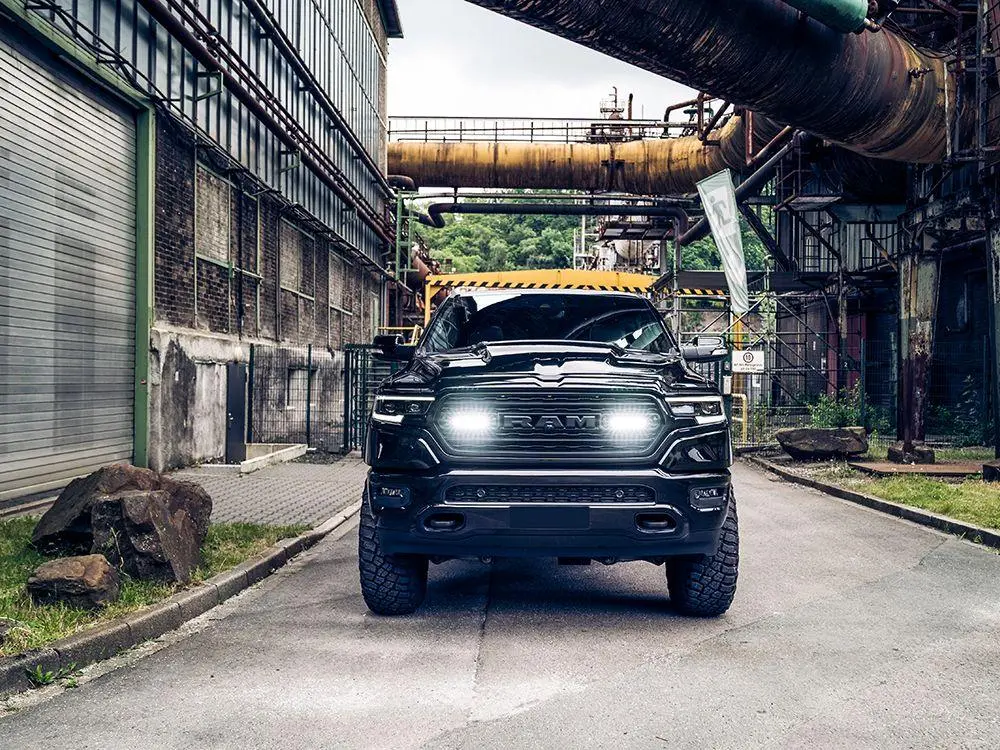

The RAM 1500 kit, designed for 2019 vehicles onwards, includes a pair of Linear-6 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.
The Lazer Grille Integration Kit for the RAM 1500 2019+ is optimised for use with Linear-6 High Performance LED Spotlights.

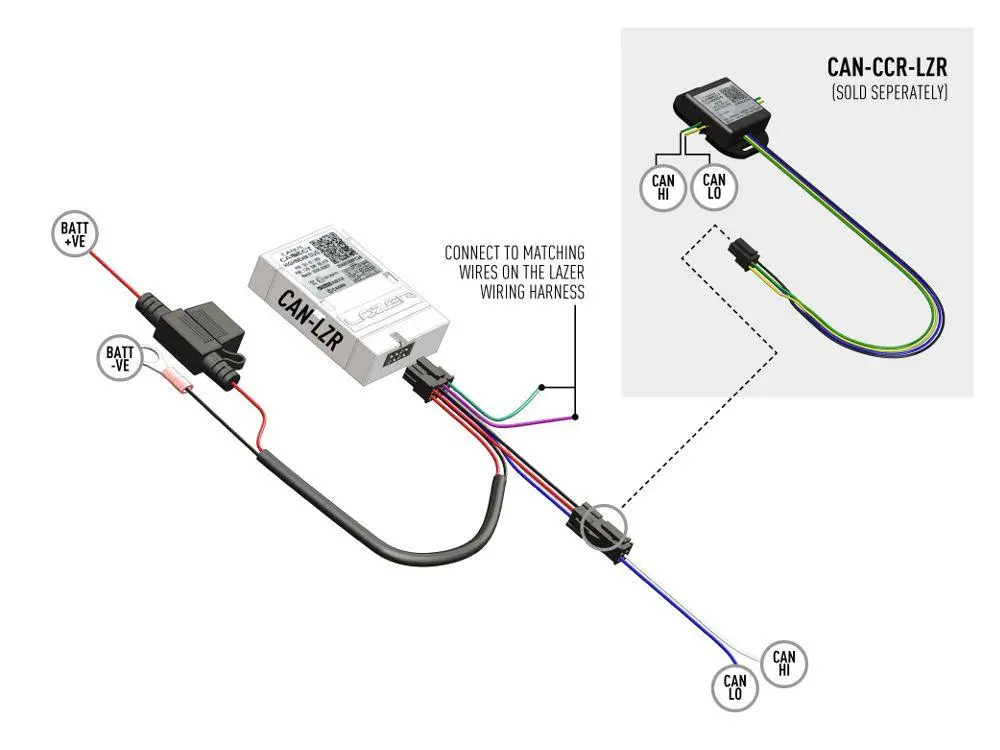

Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN interface (click here to buy). For advice on how to check for a 12V high beam signal, please click here.
What’s included:
– x2 Linear-6 High Performance LED Spotlights
– x1 Mounting Kit (comprising 4x Brackets and fasteners)
– x1 Cutting Guide (comprising 4x Brackets)
– x1 Two-Lamp Wiring Kit
– x1 Installation instructions
Technical Infomation
Based on Elite setup i.e. x2 Linear-6 Elite High Performance LED Lamps:
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 1 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 8100 Lm |
| Colour Temperature | 5000k |
| Number of High Output LEDs | 2 x 6 |
| Power Consumption | 84 Watts |
| Current Draw (at 14.4V) | 5.8 Amps |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 17.5 x2 |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 42 Degrees |
| 0.25 lx Line | 796 metres |
| 0.5 lx Line | 563 metres |
| 1 lx Line | 398 metres |
| 3 lx Line |
230 metres |
CLICK BELOW TO DOWNLOAD (OPENS PDF IN NEW WINDOW)
RAM1500 2019+- Grille Kit – Instructions (6.18 MB)- ECE Reg 10 – Certificate – Linear (1.58 MB)
- Linear-6 – Product Information Sheet (1.78 MB)
- ECE Reg 112 – Certificate – Linear-6 (875.35 KB)
- Linear-6 Elite – Product Information Sheet (1.84 MB)
- ECE Reg 112 – Certificate – Linear-6 Elite (875.12 KB)
